Like New: 600003-3PH Boss Proportioner and More
6/12K Features:
- “Baby Boss” design: New, compact chassis frame has a smaller footprint with a front-facing access cover for the hose heat compartment

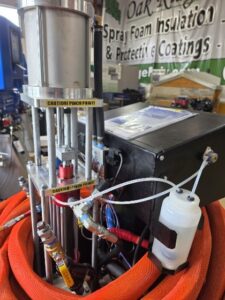

- Auto-Lubricating ISO pump: New wet-cup design with reservoir eliminates the need for daily lubrication of the ISO fluid pump
- Dual heating blocks for the ISO and Resin provide extra heating elements for colder climates
- Simple 240V single-phase system. The electrical system is all breaker and relay design, for easy repairs if needed
- Heating elements are much larger than those in competitive machines, capable of heating more material faster than other proportioners
- Designed to spray polyurethane or polyurea
- foam, bed liners, sealants, slab jacking, etc.
- 3,000 psi maximum working pressure

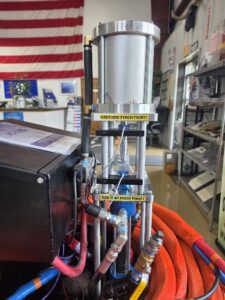

- Air-driven machine with 6″ motor
- Higher pressure output than 5″ series
- Easily attainable components to minimize downtime
- Easy to power-on and power-off

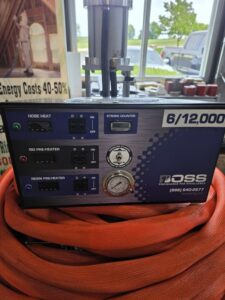

- Digital heating controls
- Hose heat transformer supports up to 400 feet of hose
6/12K Technical Data
- Preheat 12,000 watts
- 195 degrees maximum fluid temperature
- 32 lb/min. maximum output
- .0500 gal/cycle output each cycle (A & B pumps)
- Fluid inlet 3/4″ npt with 1/2″ npt outlet
- Fluid outlets
- Component A (ISO) #6 (3/8″) JIC with #5 (5/16″) JIC adapter
- Component B (Resin) #6 (3/8″) JIC with #6 (3/8″) JIC adapter
- Fluid circulation1/4″ with thermoplastic tubing (3000 psi)
- Parts contacting fluid: stainless steel, zinc plated, carbon steel, aluminum, chrome, brass, PTFE, Viton O-Rings
- Weight 301 lbs
- Dimensions – D: 24″ x W: 28″ x H: 52″
- Minimum (6/12) air requirements, including transfer pumps & air purge gun: 35 CFM @ 175 PSI (typically a 18HP gas air compressor or a 10HP electric air compressor)

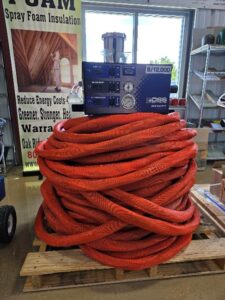

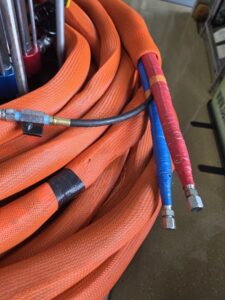

**There are (7) 50′ Premium high pressure 3/8 spray hoses and also (1) 10′ premium heated ¼ high pressure spray whip included.
Location: Wisconsin
